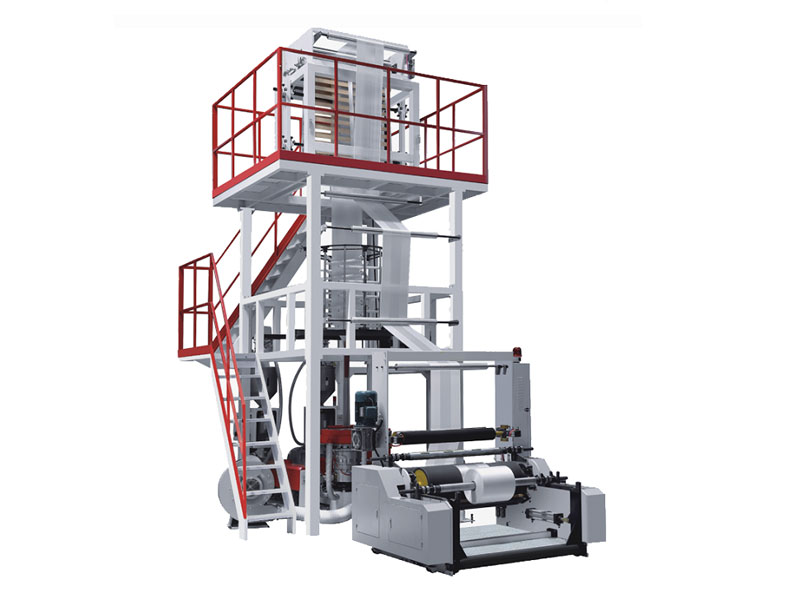

Biodegrable Film Blowing Machine
|
MIAN TECHNICAL PARAMETERS: |
||||
|
MODEL |
UTO-N-45 |
UTO-N-50 |
UTO-N-55 |
UTO-N-65 |
|
SUITABLE MATERIAL |
LDPE LLDPE HDPE |
|||
|
FILM WIDTH(mm) |
200-600 |
300-800 |
400-1000 |
600-1300 |
|
FILM THICKNESS(mm) HD |
0.009-0.08 |
0.009-0.08 |
0.009-0.08 |
0.01-0.08 |
|
FILM THICKNESS(mm) LD |
0.02-0.15 |
0.02-0.15 |
0.02-0.15 |
0.02-0.15 |
|
MAX. OUTPUT(kg/hr) HD |
50 |
60 |
75 |
105 |
|
MAX. OUTPUT(kg/hr) LD |
60 |
80 |
100 |
125 |
|
EXTRUDER |
||||
|
SCREW DIAMETER(mm) |
Φ45 |
Φ50 |
Φ55 |
Φ65 |
|
SCREW L/D RATIO |
28:1 |
|||
|
SCREW MATERIAL |
SACM-645/38 CRMOALA |
|||
|
CYLINDER MATERIAL |
SACM-645/38 CRMOALA |
|||
|
CYLINDER COOLING |
370w×2 |
370w×2/ |
550w×2 |
550×3 |
|
DRIVING MOTOR(Kw) |
15 |
18.5 |
22 |
37 |
|
TEMPERATURE CONTROL |
3 |
3 |
3 |
4 |
|
AVERAGE POWER-CONSUME(Kw) |
18 |
26 |
31 |
45 |
|
TYPE OF DIE |
||||
|
DIE SIZE(mm) HD |
60/80 |
80/100 |
100/125 |
125/150 |
|
LD |
150 |
180 |
250 |
300 |
|
TEMPERATURE CONTROL |
3 |
4 |
4 |
5 |
|
AIR RING |
1 |
|||
|
AIR BLOWER(Kw) |
2.2 |
2.2 |
3 |
5.5 |
|
TAKE UP UNIT |
||||
|
TAKE-UP ROLLER WIDTH |
φ165×650 |
φ165×850 |
Φ165×1100 |
Φ165×1400 |
|
HEIGHT ADJUSTABLE TYPE |
1000mm |
|||
|
TAKE-UP SPEED(m/min) |
10-65 |
10-65 |
10-65 |
10-65 |
|
TAKE-UP MOTOR(Kw) |
0.75 |
1.5 |
1.5 |
1.5 |
|
WINDING UNIT |
||||
|
WINDING TYPE |
SURFACE FRICTION TYPE |
|||
|
WINDING MOTOR(N.m) |
5 |
10 |
10 |
16 |
|
WINDING SPEED(m/min) |
10-65 |
10-65 |
10-65 |
10-65 |
|
OVERALL DIMENSION(LxWxH) |
5.0×2.0×4.5m |
5.0×2.2×5.0m |
5.5×2.5×5.5m |
5.8×2.8×6.5m |
|
OPTIONAL EQUIPMENT: 1)AUTO LOADER 2)EMBOSSING ROLLER 3)CORONA TREATER 4)DIE ROTARY DIVICE 5)AIR COMPRESSOR 6)MANUAL SCREEN CHANGER |
||||
●The above specifications, dimensions & design characteristics are subject to change without notice.
